Key takeaways
- Network infrastructure planning starts with requirements and a site survey, not a hardware list.
- Labelled, documented structured cabling is the foundation of a maintainable network.
- Plan Wi-Fi for coverage and capacity, not floor area alone.
- Segment the network to separate staff, guests, cameras and devices.
- Do not sign off without acceptance tests and complete handover documents.
Employees barely notice a good network because it works consistently. Poor planning, however, produces weak Wi-Fi zones, unidentified cables, insufficient ports, and faults that take hours to isolate. Successful network infrastructure planning begins with the site and its expected use, not with buying the fastest device on a list.
Start with Requirements, Not Hardware
Count people and devices today, then estimate growth over the expected use of the premises. Include IP phones, printers, point-of-sale terminals, surveillance cameras, attendance devices, meeting rooms, and guest equipment. Identify delay-sensitive applications such as calls, video meetings, and cloud systems.
This inventory informs outlet counts, switch capacity, PoE requirements, inter-floor uplinks, and wireless access-point density.
Conduct a Technical Site Survey
- Review floor plans, power routes, walls, and ceiling conditions.
- Select a communications room with suitable power, cooling, and access control.
- Measure practical cable routes and avoid interference or hazardous paths.
- Record desks, meeting rooms, warehouses, and service-point locations.
- Plan redundant links or alternative routes where operations justify them.
Structured Cabling: A Maintainable Foundation
Cable category alone does not guarantee performance. Route length, bend radius, separation from power, termination quality, and labels at both ends all matter. Use patch panels and correct cable management in the rack, with spare capacity instead of filling every port on opening day.

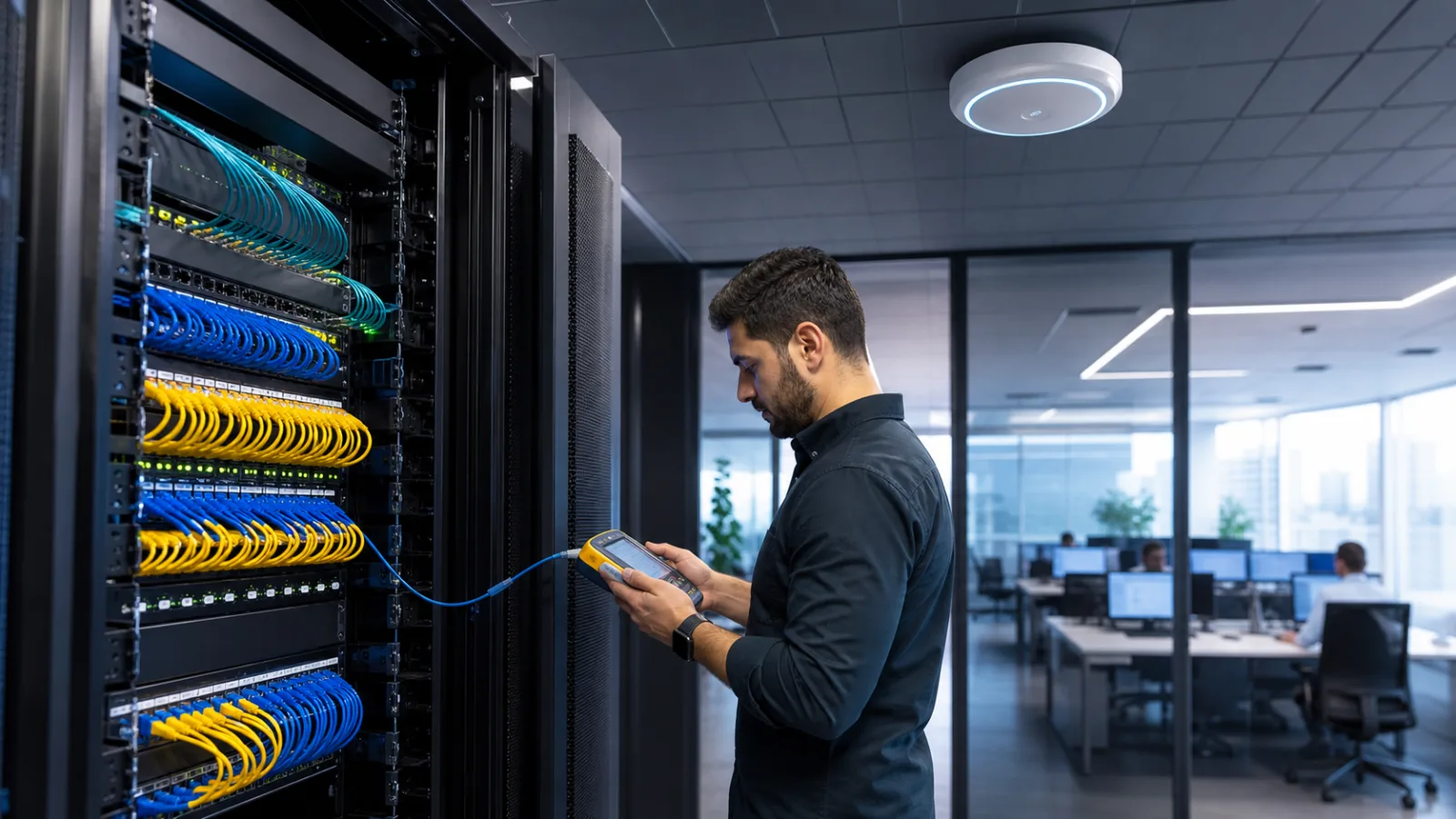

Test every outlet with appropriate equipment and associate the result with its port number. A future technician can then locate a fault in minutes instead of tracing an undocumented cable.
Plan Wi-Fi for Coverage and Capacity
A visible signal is not the same as usable service. Wireless design balances coverage area, user count, wall materials, interference, and traffic. One powerful access point in the center may perform worse than several correctly placed and managed units.
- Survey radio conditions and sources of interference.
- Estimate user density in each area, especially meeting rooms.
- Avoid positions obstructed by metal or enclosed ceilings.
- Separate staff, guest, and smart-device networks with clear policies.
- Test roaming and real application performance after installation.
Switches, Racks, and Power
Calculate port capacity with growth headroom, then verify the total PoE budget if the network powers phones, access points, or cameras. Organize the rack for access and airflow, and provide an appropriate UPS for critical equipment. Document configurations and retain a protected backup.
Segment the Network to Reduce Risk
Guest devices and cameras should not reach the same resources as management computers. Logical segmentation, firewall rules, and controlled device administration limit the spread of incidents and faults. Replace default credentials, maintain firmware, and restrict network management to authorized people and locations.
What Should Handover Documentation Include?
- Physical and logical network diagrams.
- An outlet, location, and switch-port schedule.
- Cable certification and Wi-Fi survey results.
- Device inventory, serial numbers, and warranties.
- Protected configuration backups and recovery procedures.
- A maintenance plan and clear incident responsibilities.
Acceptance Tests Before Sign-Off
Test realistic peak usage, roaming between Wi-Fi points, loss of primary power, and access controls between user groups. Confirm that switches and uplinks are monitored and that alerts reach the responsible person. Acceptance should prove that the design works as a system—not merely that each device has a power light.
When Does a Network Need Expansion or Redesign?
Typical warning signs include slow areas, dropped calls while moving, full switches, unmanaged desktop switches, unidentified outlets, or every device sharing one unsegmented network. A well-planned upgrade may begin with documentation and segmentation before hardware replacement.
Network Infrastructure Planning by Office Size
| Office size | Typical needs |
|---|---|
| Small office, up to about 15 staff | A good router, one switch, two Wi-Fi access points, a separate guest network and a UPS for core devices. |
| Medium office | Structured cabling to each desk, a small rack, managed switches, centrally managed access points and network segmentation. |
| Several floors or branches | A fibre backbone between floors, a rack per floor, secure links between branches and continuous monitoring. |
Common Mistakes
- Cables with no labels or plan, making every later fault hard to trace.
- Relying on one distant router to cover the whole office.
- Putting cameras, printers and guest devices on the staff network.
- Leaving no spare ports, so small switches get added randomly later.
- No backup power for the rack, so the network drops at the first outage.
Security from Day One
Change default passwords, update firmware, disable unused remote management and fully isolate the guest network. Our guide to business Wi-Fi and guest network security covers these settings, and our cybersecurity service can assess an existing network. If the network will carry cameras, plan it with the surveillance system from the start.
After handover, enable alerts for offline switches and access points, review usage monthly and keep configuration backups so a failed device can be replaced quickly.
Conclusion
A business network becomes a durable investment when it combines capacity planning, documented cabling, engineered wireless coverage, security, and verifiable tests. For site assessment, implementation, and structured handover, explore AISMISR's network infrastructure service.
Frequently asked questions
What is the difference between Cat6 and Cat6A?
Cat6A supports higher speeds over longer distances with less interference and suits offices planning growth or high-speed devices. Cat6 is enough for most small and medium offices today.
How many Wi-Fi access points does an office need?
It depends on floor area, walls, user count and simultaneous devices. A survey with signal measurement is more accurate than area alone.
Why separate guest and camera networks from staff?
Separation stops an infected device or guest reaching internal systems and limits the impact of any problem on the rest of the network.
